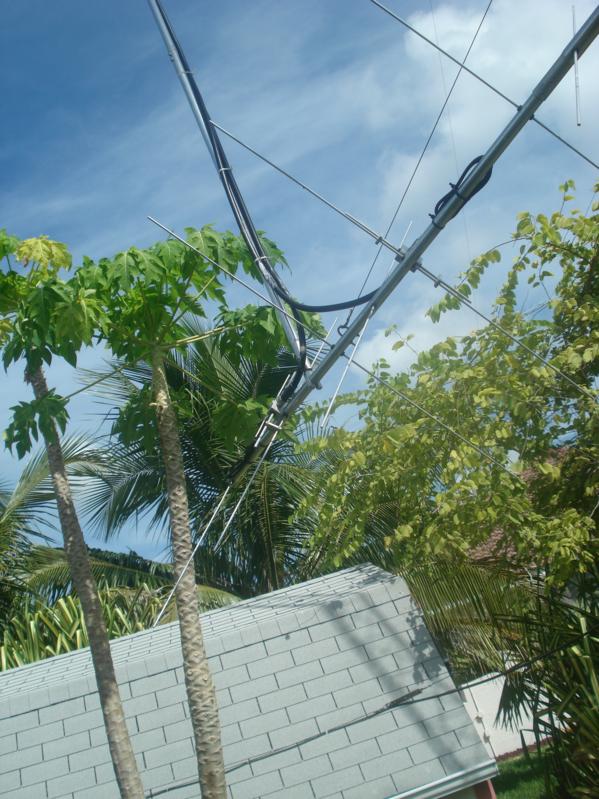

Details of one Yagi antenna are shown here. Note the antnna's elements are positioned in an 'x' (as opposed to '+') configuration for a more convenient polarisation switching.
